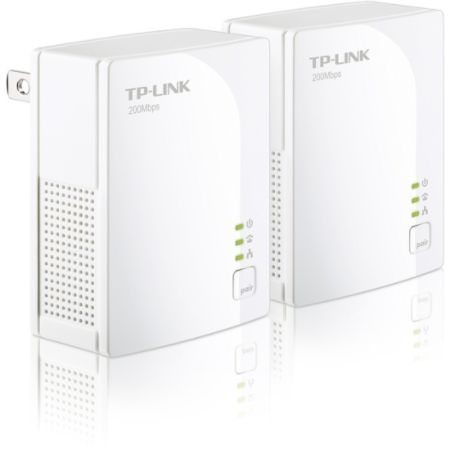

TP-LINK AV200 Nano Powerline Adapter Starter Kit Item # 538166
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
538166
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
TP-LINK's TL-PA2010KIT powerline adapters take advantage of your home's existing electrical wires to transfer data while simultaneously transferring traditional power. That means, with no additional wiring required, users can simply plug the TL-PA2010KIT into existing power sockets and instantly establish a networking infrastructure. With its miniature design, you'll enjoy the flexibility of plugging it anywhere in your home!
Product Details
| Item # | 538166 |
| OfficeMax # | 24025733 |
| Manufacturer # | QW0493 |
| Ethernet Technology | Fast Ethernet |
| height | 1.1 in |
| Certifications & Standards | IEEE 802.3; IEEE 802.3u; CE; FCC |
| Number of Network (RJ-45) Ports | 1 |
| Powerline Data Transfer Rate | 200 Mbit/s |
| BNC | No |
| PoE (RJ-45) Port | No |
| width | 2.6 in |
| package contents | 2 x TL-PA2010 Powerline Ethernet Adapters; 2 x 2-meter RJ-45 Ethernet Cable; Resource CD; Quick Installation Guide |
| Audio Line In | No |
| Powerline Transmission Standard | HomePlug AV |
| depth | 2 in |
| Product Name | AV200 Nano Powerline Adapter Starter Kit |
| manufacturer | TP-LINK Technologies Co., Ltd |
| Audio Line Out | No |
| Maximum Distance Supported | 984.25 ft |
| Modulation | OFDM |
| brand name | TP-LINK |
| USB | No |
| Network (RJ-45) | Yes |
| Wireless LAN | No |
| Phone Line (RJ-11) | No |
| model name | TL-PA2010KIT |
| Show More ▾ |
Customer Reviews
Rated 3 out of 5�by 2
reviewers.
Rated 5 out of 5�by Elsneian Saved me
I bought this because my wireless card in my ps4 is terrible. I'm talking 200kbps slow. After hooking this bad boy up I get 11 Mbps and can game with zero lag. It's awesome.
February 23, 2016
Rated 1 out of 5�by Ken disappointment
Does not perform as advertised. The room where the extension was placed was less than 100 feet from the base and the signal improvement was marginal at best (100 mbps at router, 38 at laptop.) Tech support says "it must be your house wiring." My house is not that old (20 years) where this should be an issue. Easy enough to install, etc. but not worth the time or money in my opinion. Maybe you get what you pay for.
October 6, 2014
1-2 of 2
From the Manufacturer|
Product Tour
| Image/Features |
|---|
Up to 200Mbps, 1000 FeetWith advanced HomePlug AV technology, TL-PA2010KIT provide users with stable, high-speed data transfer rates of up to 200Mbps on a line length of up to 1000 feet. Together, with its built-in powerful AES encryption, the TL-PA2010KIT is a great choice for an entire home solution to connect all network compatible devices -- from computers and game consoles to printers, NAS hard drives, and set-top boxes for IPTVs.
Pair Button for Easy Network SecurityBy simply pushing the Pair button on your TL-PA2010KIT adapters, you can set up a hassle-free Powerline network within minutes that’s complete with 128-bit AES encryption for network security and data protection.
It's that simple! 1. Plug the adapter into a power outlet. 2. Connect the device via a network cable to the adapter. 3. Press the encryption buttons—and you're done! |
Miniature Design, Ultra-compactWith its’ new ultra-compact housing design, TP-LINK's TL-PA21010 is considerably smaller than TP-LINK’s legacy mini 200Mbps Powerline products. Made out of an elegant white shell that’s just 1.1 inches thick, it nearly blends into any power outlet.
|
Click to Start
See More:
Overview
-
What This Product Does
The TL-PA2010KIT AV200 Nano Powerline Adapter Starter Kit by TP-LINK uses your home's existing electrical wires to create or expand your home network. With no additional wiring required, you can simply plug the TL-PA2010KIT into existing power sockets and instantly establish a networking infrastructure. With high-speed data transfer rates of up to 200Mbps, you can enjoy HD video streaming, online gaming, VoIP, or any other bandwidth intensive tasks. Plus, its miniature design gives you the flexibility to plug it in anywhere in your home.
Key Features
-
AV200 Powerline Speeds
HomePlug AV standard compliant, high-speed data transfer rates of up to 200Mbps -
Up to 1000 Feet
Up to 1000 feet over an electrical circuit, better performance than wireless through walls or across floors -
Multi IPTV Streams
Supports IGMP managed multicast IP transmission, optimizes IPTV streaming -
Power-Saving Mode
Patented Power-Saving reduces power consumption by up to 75% -
Plug and Play
No new wires or configuration required -
One Button Security
Easily encryption via Pair Button
-
Miniature Design, Ultra-compact
With its new ultra-compact housing design, TP-LINK's TL-PA2010 is considerably smaller than TP-LINK’s legacy mini 200Mbps Powerline products. Made out of an elegant white shell that’s just 1.1 inches thick, it nearly blends into any power outlet. -
Up to 200Mbps, 1000 Feet
With advanced HomePlug AV technology, TL-PA2010KIT provide users with stable, high-speed data transfer rates of up to 200Mbps on a line length of up to 1000 feet. Together, with its built-in powerful AES encryption, the TL-PA2010KIT is a great choice for an entire home solution to connect all network compatible devices -- from computers and game consoles to printers, NAS hard drives, and set-top boxes for IPTVs. -
Reduces Power Consumption Up to 75%
The TL-PA2010KIT employs a sophisticated Power-Saving Mode that consumes significantly less power when compared to your average Powerline Adapter. When there’s no reception or data transmission over a certain period of time, the TL-PA2010KIT will automatically switch from "Working" Mode to "Power-Saving" Mode. This will reduce its energy consumption by up to 75%*.
*Actual data will vary because of the network conditions and environmental factors -
Plug and Play
Simply plug in your adapters and you're ready to go! No new wires or configuration required:
1. Plug the adapter into the power outlet
2. Connect the device via the network cable to the adapter
3. Press the encryption buttons - and you're done! -
Pair Button for Easy Network Security
By simply pushing the Pair button on your TL-PA2010KIT adapters, you can set up a hassle-free Powerline network within minutes that’s complete with 128-bit AES encryption for network security and data protection.
Product Views
Warranty
-
Need assistance setting up your TP-LINK device? Our team is here 24/7 to provide toll-free technical support. Whether you bought a TP-LINK product yesterday or years ago, we can help with product setup and configuration at no extra charge. Plus, our 2-year warranty grants you worry-free service for peace of mind
Features
- HomePlug AV standard compliant, high-speed data transfer rate of up to 200Mbps
- Miniature design, smaller than most powerline adapters at the market, blends indiscreetly in front of any power outlet
- No new wires, use existing electrical wiring
- Up to a 1000 foot range over a home's electrical circuit for better performance through walls or across floors
- Plug and Play, no new wires or configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 75%
- 128-bit AES encryption ensures that the network is safe simply by pressing a button on paired devices
- Supports IGMP managed multicast IP transmission, optimizes IPTV streaming
- *Actual data will vary because of the network conditions and environment factors
Package Contents
- 2 * TL-PA2010 Powerline Ethernet Adapters
- Ethernet cable (RJ45)
- Resource CD,
- Quick Installation Guide
Powerline Comparison Chart
|
|
|
|
|
|
| AV200 Nano Powerline Adapter Starter Kit | AV500 Nano Powerline Adapter Starter Kit | AV500 Gigabit Powerline Adapter Starter Kit | AV600 Gigabit Powerline Adapter Starter Kit | 300Mbps Wi-Fi Range Extender, AV500 Powerline Edition | |
|---|---|---|---|---|---|
| Model | TL-PA2010KIT | TL-PA4010KIT | TL-PA511KIT | TL-PA6010KIT | TL-WPA4220KIT |
| Speed (Wired) | Up to 200 Mbps | Up to 500 Mbps | Up to 500 Mbps | Up to 600Mbps | Up to 500 Mbps |
| Wireless Speed | Up to 300 Mbps | ||||
| Wireless |
|
||||
| Plug and Play |
|
|
|
|
|
| One Button Security Setup |
|
|
|
|
|
| HD video & Online Gaming |
|
|
|
|
|
| Power Saving Mode [...] |
|
|
|
|
|
| Multiple HD/3D Video Streaming |
|
|
|
|
|
| Gigabit |
|
|
|||
| Encryption Type | 128-bit AES | 128-bit AES | 128-bit AES | 128-bit AES |
128-bit AES (Wired) WEP, WPA/WPA2 (Wireless) |
| IPTV Channel Availability | Multiple Channel Streaming | Multiple Channel Streaming | Multiple Channel Streaming | Multiple Channel Streaming | Multiple Channel Streaming |
